6-Channel AI Vehicle Monitoring System with 10.1-inch HD IPS LCD and 512GB SD Card Recording for Fleet Security

6-Channel AI Vehicle Monitoring System with 10.1-inch HD IPS LCD and 512GB SD Card Recording for Fleet Security

Nome da marca:	CandidTech
MOQ:	300
preço:	negotiable
Condições de pagamento:	T/T
Capacidade de abastecimento:	100.000 unidades/mês

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

China

Certificação:

IATF16949/ISO9001/ISO14000

Mostrar:

LCD IPS HD de 10,1 polegadas

IA:

Algoritmo BSD de 6 canais suportado

Vídeo em:

Entrada mista AHD 720P/108P de 6 canais

鎮ㄨ鎵剧殑璧勬簮宸茶鍒犻櫎銆佸凡鏇村悕鎴栨殏鏃朵笉鍙敤銆:

Cartão SD máx. 512 GB

Modos de exibição:

6 divisões / visualização única / troca automática / troca de voz

Resolução de exibição:

1024 (RGB) ×600

Tensão de entrada:

12-32V

Consumo de energia:

Máx. 12W; Espera 0,5 W

Temperatura operacional:

-30 ° C ~+80 ° C.

Distância IR da câmera:

5-10m

Classificação à prova d'água da câmera:

IP69K

Habilidade da fonte:

100.000 unidades/mês

Descrição do produto

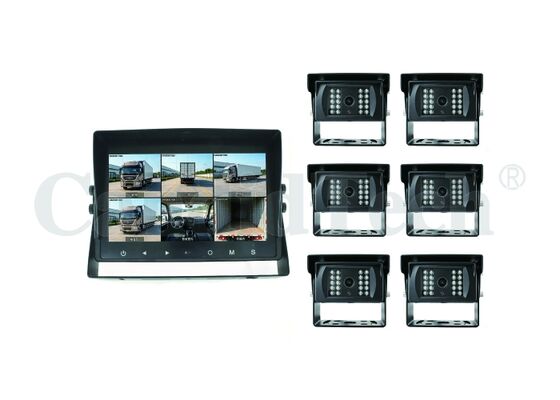

6-Channel AI Vehicle Monitoring System for Commercial Vehicle & Fleet Security

CandidTech 6 Channel Vehicle Surveillance System provides AI-powered blind spot detection (BSD) and rugged high-definition monitoring for all commercial and fleet vehicles. Built with field-proven performance, it effectively reduces collision risks, lowers operational costs and helps fleets meet global safety compliance requirements.

Display Specifications

Resolution	1024(RGB)*600
Aspect Ratio	16:9
Viewing Angle	U:50°/D:70°, L/R:70°
Compression	H.264
Input Voltage	12-32V
Power	Max 12W; Standby 0.5W
Operating Temp	-30°C~+80°C
Language	Chinese / English
Waterproof	Non-waterproof (IP67 optional)

Camera Specifications

Sensor	1/2.9" (2000TVL) 1080P
IR Distance	Camera1 ≤5m; Camera2 5-10m
Waterproof	IP69K
Voltage	DC12V
Power	<5W
Operating Temp	-20°C~80°C

Key Features

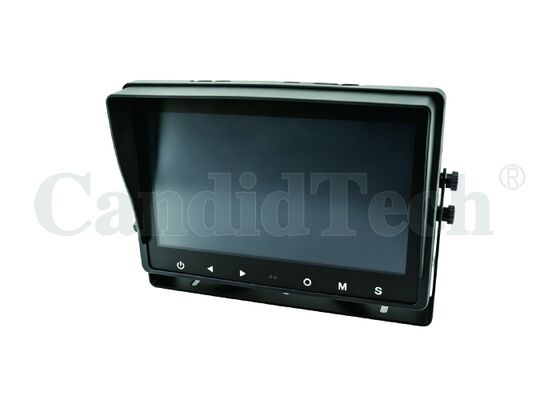

·10.1-inch HD IPS Smart Display – Real-time Vehicle Surveillance

Large IPS LCD screen with wide viewing angles; supports voice and multi-mode screen switching. Wide voltage (12-32V) and wide temperature design for commercial vehicle compatibility.

·6-Channel AI BSD Blind Spot Monitoring – AI Driver Assistance

AI-powered 6-way blind spot detection with independent on/off control. Real-time risk alerts in this multi-channel vehicle camera system can eliminate blind zones and reduce collision risks.

·High-Capacity HD DVR Recording – Loop Recording for Vehicle Evidence

H.264 compression supports up to 512GB SD card; loop recording and time-search playback for complete, traceable driving evidence.

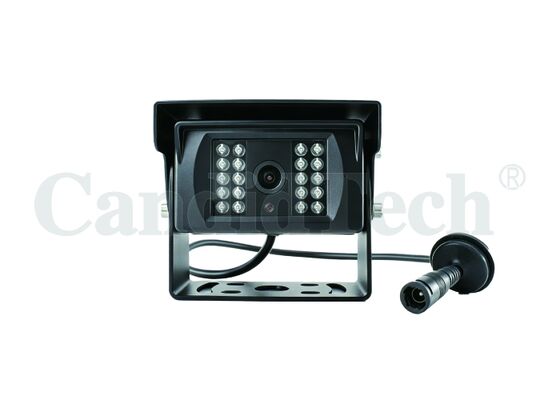

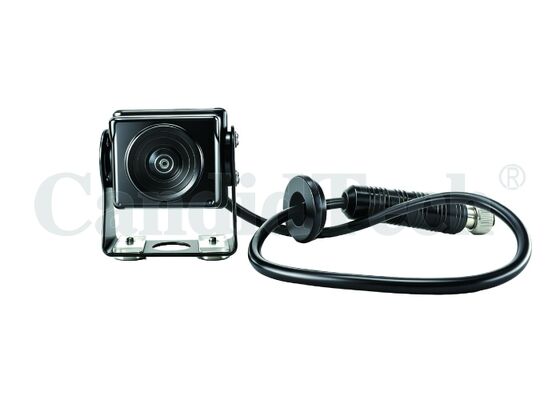

·Automotive-Grade Waterproof Cameras

IP67/IP69K waterproof cameras with infrared night vision. Stable in -20℃ to 80℃ for all-weather harsh-environment use.

·User-Friendly Multi-Function Design

Voice control, multi-screen preview, and event-triggered display. Wide compatibility for trucks, construction vehicles, school buses, and all commercial vehicle as a reliable fleet safety monitoring solution.

Core Selling Points

The monitor features built-in storage, eliminating the need for an external host and cutting costs.
Simple wiring enables quick and easy installation.
Compared with 4-channel systems, the 6-channel solution fits larger and longer vehicles and reduces blind spots.
The monitor supports 6-split screen and single-display modes with automatic mode switching.
Different types of cameras can be freely combined as needed.
CandidTech supports customizable AI vehicle monitoring solution for global commercial fleet management.

Frequently Asked Questions

Q: What types of vehicles can use this AI vehicle monitoring system?

A: It is suitable for coaches, logistics trucks, delivery vans, construction vehicles, service fleets and all commercial vehicles.

Q: Does this 6 Channel Vehicle Surveillance System perform reliably in extreme weather?

A: Yes. Cameras are IP67/IP69 rated and work stably from -20°C to +80°C.

Q: Can I adjust BSD alert settings of this Multi-Channel Vehicle Camera System?

A: Yes. Alert zones, sensitivity and volume are fully customizable.

Q: How is footage stored and protected in this 6 Channel AI Vehicle Monitoring System?

A: The monitor supports up to 512GB SD card with loop recording; event footage is locked and not overwritten.

Q: Is installation and operation easy?

A: Yes. This Intelligent 6-Channel Vehicle Monitoring with ADAS & BSD supports 12-32V vehicle power and uses intuitive voice/touch control.
